1C Installing the Roll Holders

Some light assembly is required before operating the printer. Follow these instructions to install the roll holders.

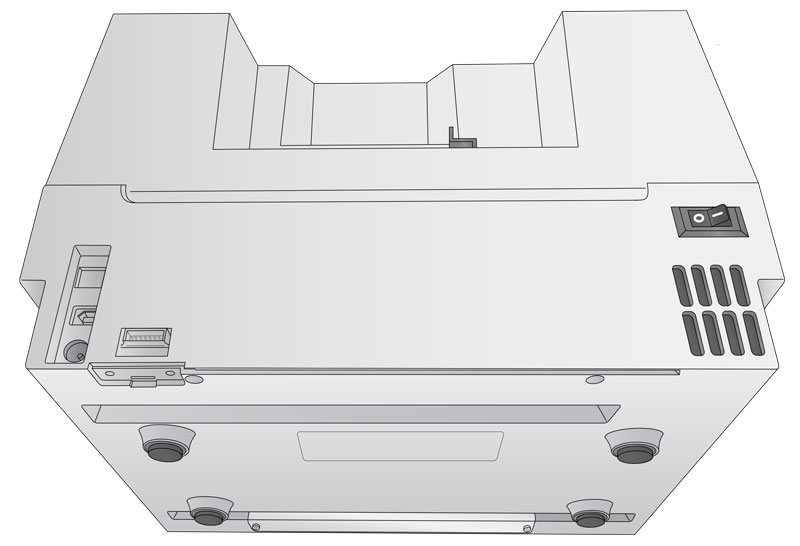

  1. Set the printer on its front so the bottom is facing you
  2. image
  3. Install the movable label roll holder by attaching the hooked end on the rail. The bottom of the holder will fit in the notch on the printer.
  4. image

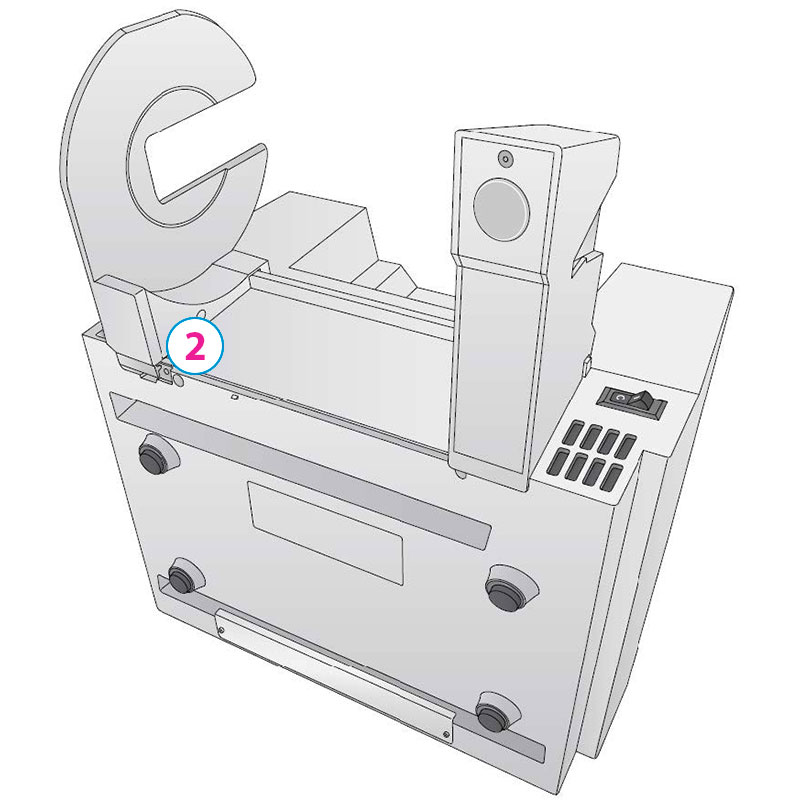

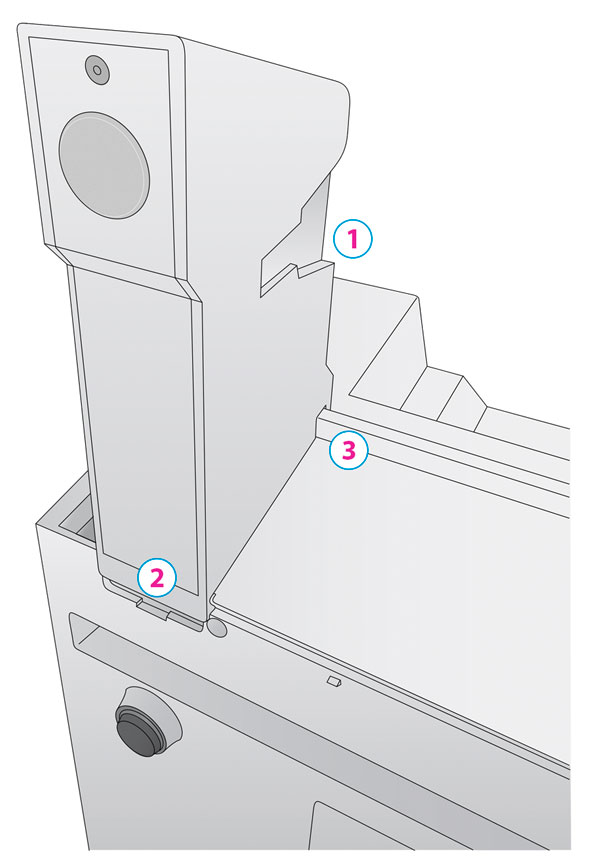

    1Movable Roll Holder

    2Tab

    3Rail


    1Movable Roll Holder

  5. Slide the Roll Holder to the far right.

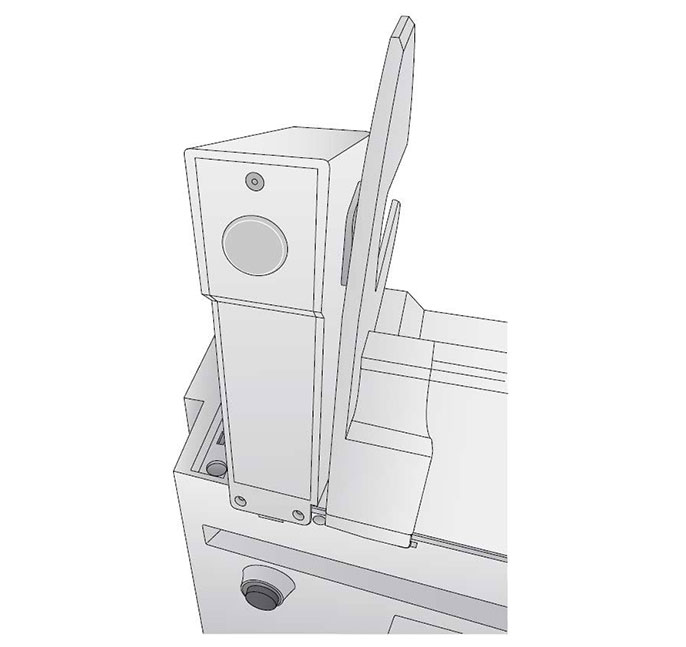

  6. image

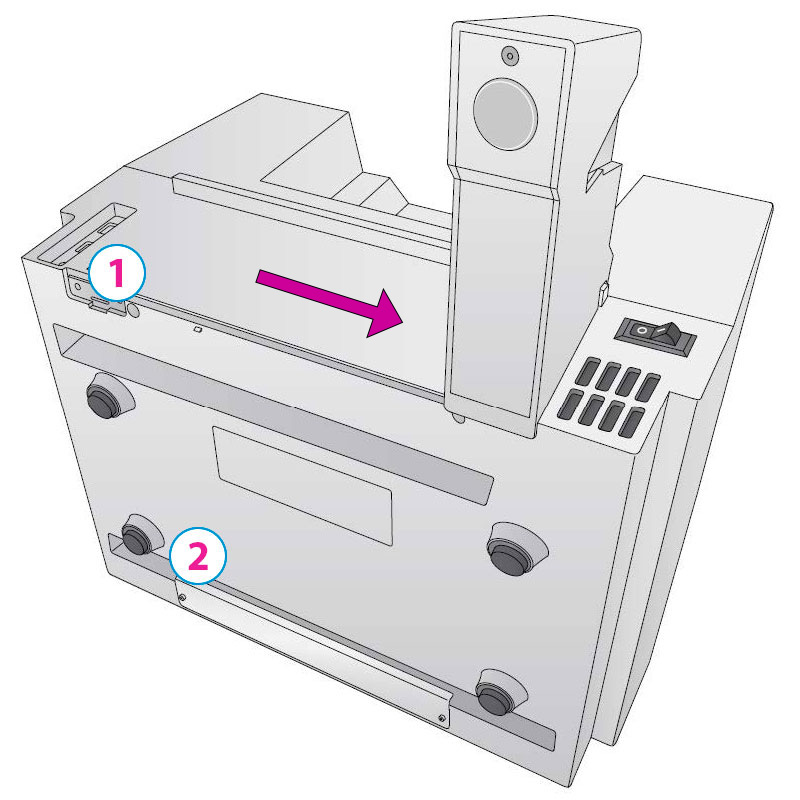

    1Notch

    2Notch

  7. Install the roll guide by attaching the hookedend on the rail. The bottom of the holder will fit in the notch on the printer.

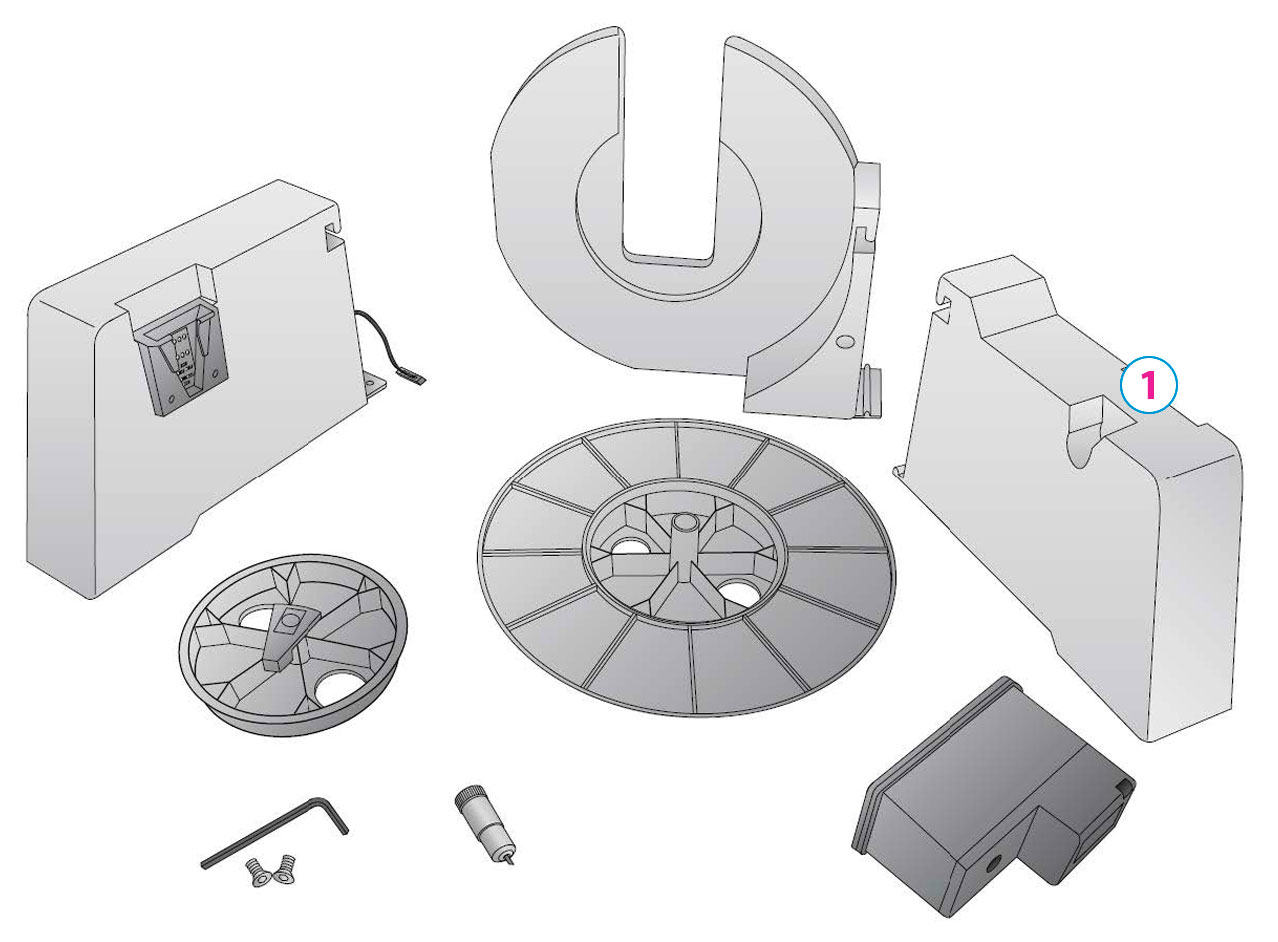

  8. 1Roll Guide


    1Roll Guide


    2Stop

  9. Slide the Roll Holder to the far right.
  10. Locate the remaining roll holder with the protruding wire. Connect the wire to the port on the printer.Tuck the wire inside the cavity.
  11. image

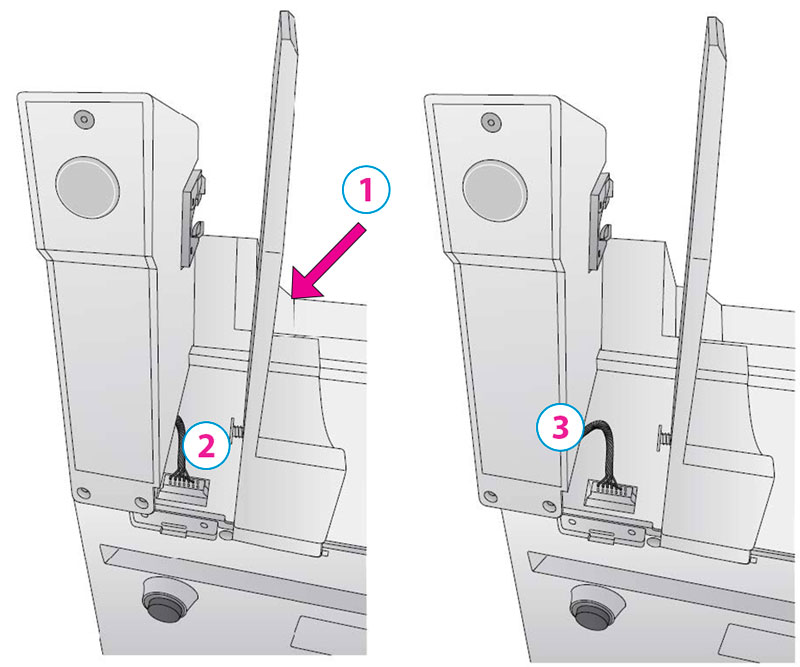

    1Push the wire into the cavity as you move the holder closer to the notch

    2Wire

    3Notch

  12. Snap the holder in place so the two screw holes line up with the holes on the printer.
  13. image

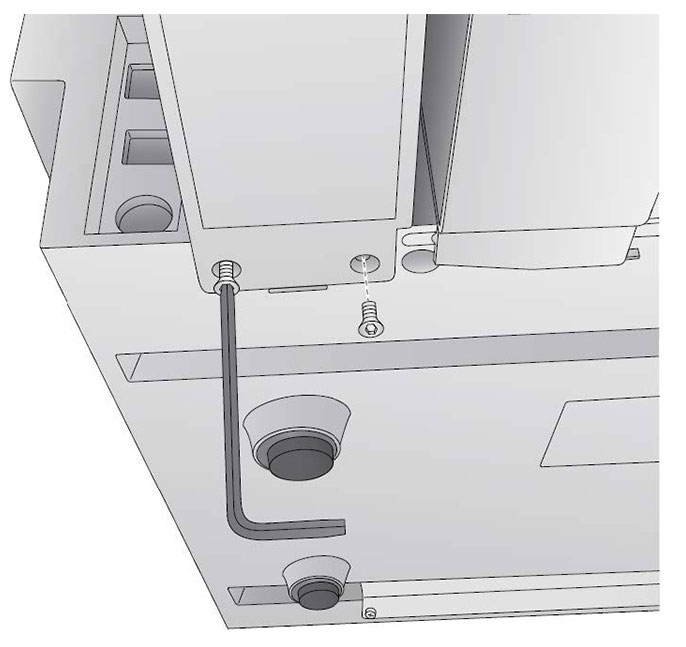

  14. Install the T8 screws using the INCLUDED Allen key or a Torx T8 screwdriver.
  15. Rotate the printer back on its feet.
