Section 1: Getting Started

THANK YOU…

...for purchasing the AP360e or AP362e Label Applicator (hereafter referred to as "Label Applicator"). Bottles, cans etc. will collectively be referred to as "containers." This manual applies to two label applicator models. The AP362e has a Control Panel that allows you to count labels and apply two labels to the same container. The AP360e does not have a Control Panel or two label capability.

The Label Applicator includes a power cord, 12 volt power adapter and the parts shown in Figure 1-1. The Roll Bar, Roll Guides and Roll Drag Arm are located in the supply box along with the Power Cord. You will need to assemble them as shown in Figure 1-1. Attach the Power Cord and switch on the power as shown in Figure 1-2. Feed the Foot Switch and Foot Switch cord out through the front of the Label Applicator. Remove the tape securing the Container Rollers.

Figure 1-1.

1Container Pressure Arm

2Liner Idler Roller

3Liner Drive Roller

4Container Guides

5Container Idler Roller

6Container Drive Roller

7Label Sensor Flag

8Label Sensor Bracket

9Peel Edge

10Control Panel (AP362 only)

11Roll Bar

12Roll Guides

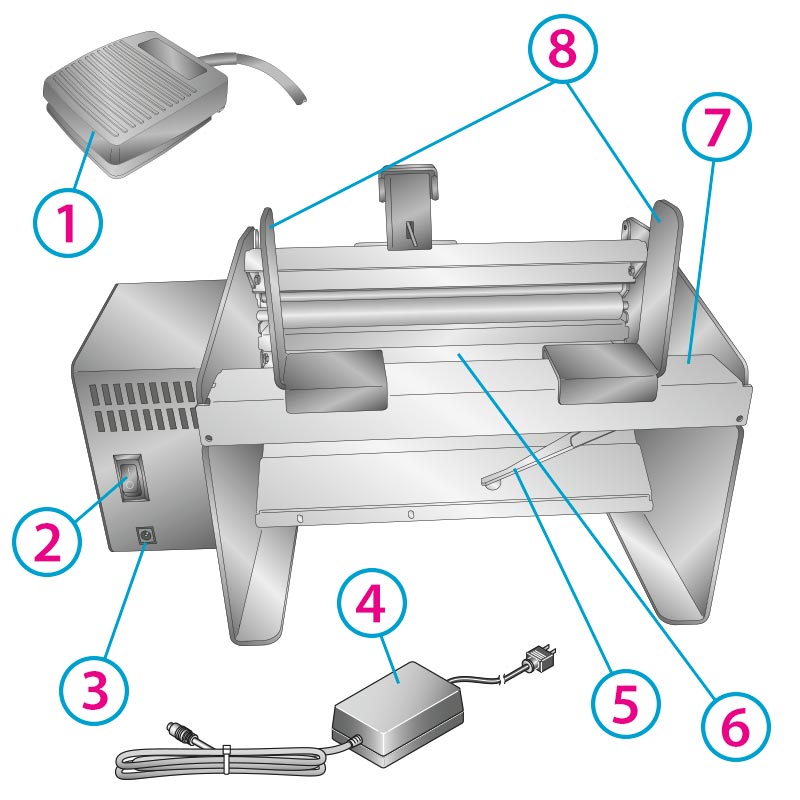

Figure 1-2.

1Foot Switch

2Power Switch

3Power Input 12 V

4Power Cord

5Roll Drag Arm

6Feed Area (under grey bar)

7Roll Bar

8Roll Guides
