Section 3: Primera PrintHub

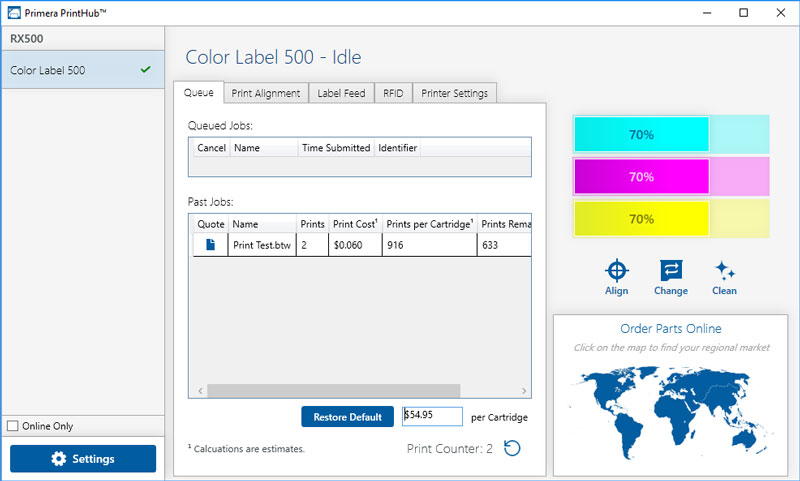

Primera PrintHub is used to interact with the printer for gathering ink levels, maintenance, alignment, cost calculation and several other functions. You can use it to manage these functions on multiple LX500e/RX500e printers and other Primera label printer models.
- Connect the printer via USB and turn on the power. The PrintHub accesses most of the information it uses from the printer itself so the printer must be turned on and communicating for the program to be useful.
- Go to Start - Programs - Primera Technology - Primera PrintHub.

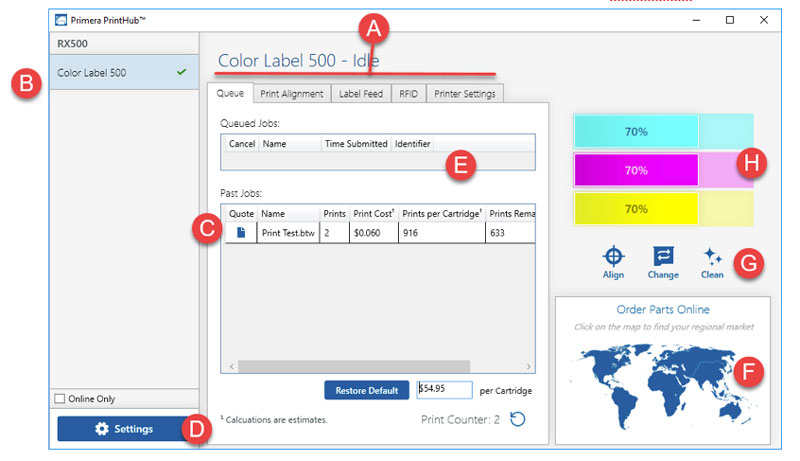

A. Adjust alignment, sensor mode, output mode, RFID settings and advanced settings.
B. If you have multiple Primera printers connected, they will be listed here.
C. Past jobs will show the last 5 jobs along with cost information. Click the document icon to view a cost report.
D. Application Settings
E. Print Queue shows the currently printing job.
F. Order Link
G. Frequent Activities
H. Current Ink Levels
3A Monitoring Ink Levels
Ink levels can be monitored at any time by using the PrintHub. Immediately after printing starts the PrintHub will display the ink levels in the upper right corner of the application. Ink is displayed in 10% increments. Example 100% to 90% to 80%.
