LX4000e Packing Instructions

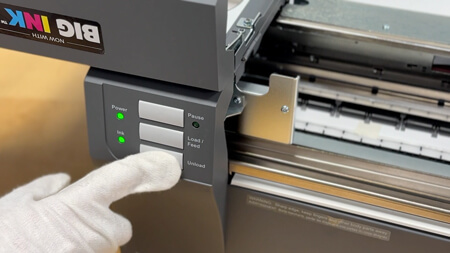

Open the cover and unload the label roll by pressing the unload button.

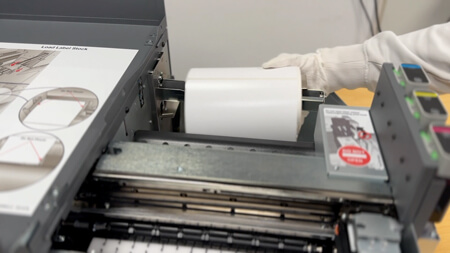

Remove the label roll and move the roll guide to the left.

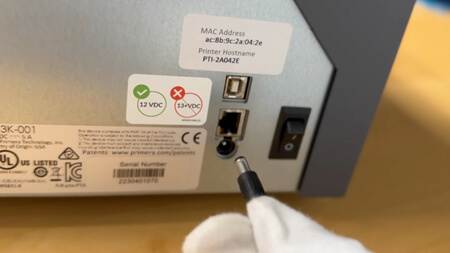

Turn the printer off and remove the cables.

Install all Shipping Caps before shipping the LX4000e

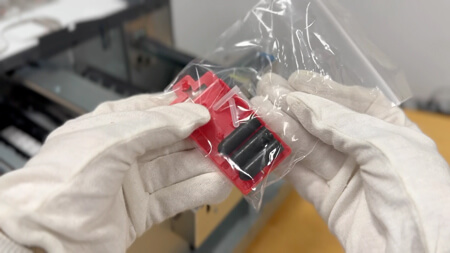

Every set of shipping caps includes three large black rubber caps, three small transparent rubber caps and one red printhead cap.

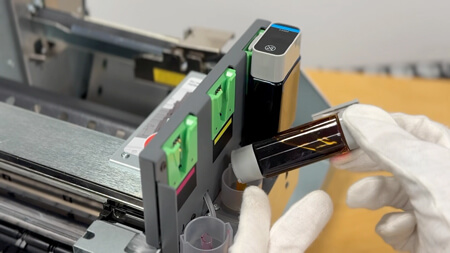

Remove the three ink tanks. Hold the tanks by the grey plastic and pull them out slowly and carefully. You can push the cartridge up at the lower corners for assistance. To prevent leaking, hold the tank above the reservoir for a few moments until it stops dripping.

Tip: Hold the ink tank over the reservoir as you turn it over.

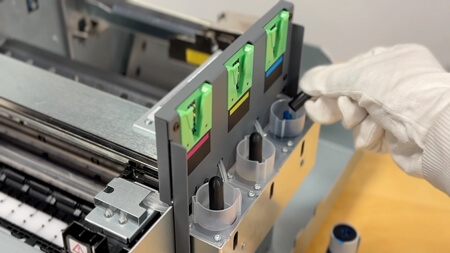

Now install the black rubber caps. Make sure they are all secure.

Remove the print head.

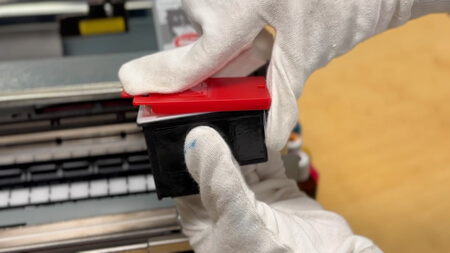

Install the red cap. Align the pins with the holes on the top of the print head.

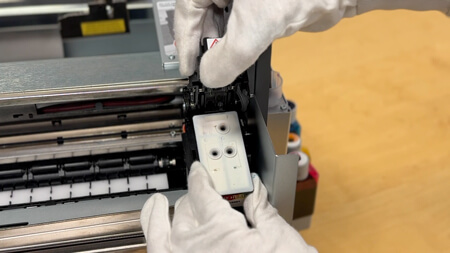

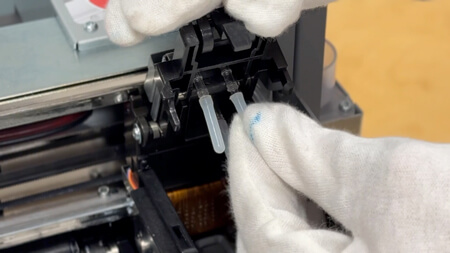

Let’s cap the printhead side with the smaller transparent caps. Push the caps until the first rib on the nozzle. Then close the lid.

Store the cartridges and printhead in an airtight box or bag.

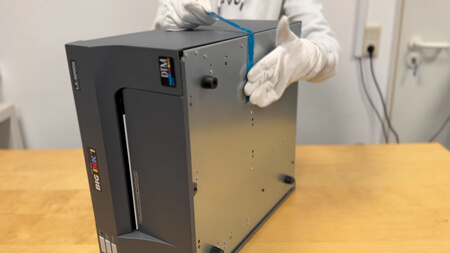

Close the cover and secure it with tape.

Bag the printer and tape it.

Use the original packaging for best protection.
