LX3000e Packing Instructions

To prepare your label printer for shipping, please remove the label roll. Please note: The LX3000e ink tube system must be sealed before shipping the printer.

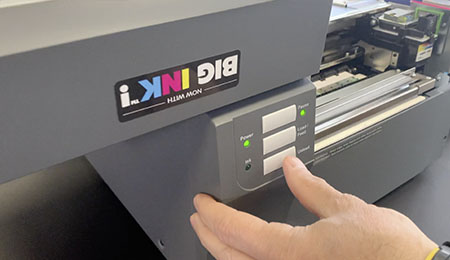

Open the cover and unload the label roll by pressing the unload button.

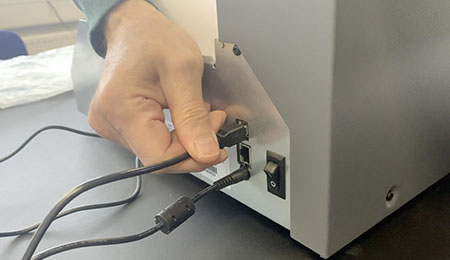

Turn the printer off and remove the cables.

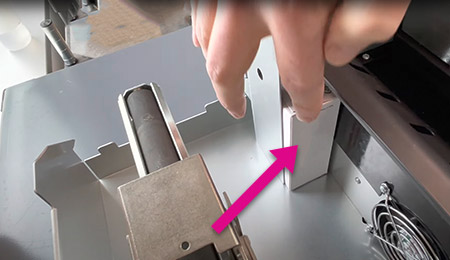

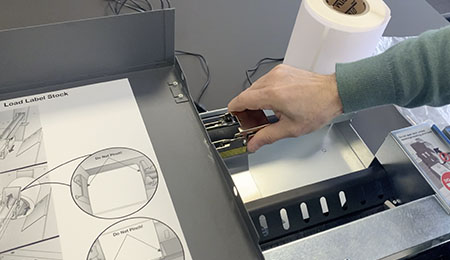

Remove the label roll and move the roll guide to the left.

Install all Shipping Caps before shipping

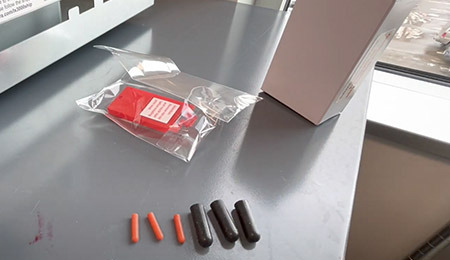

If your printer was shipped after 15/02/2022 the shipping caps are stored in the stock loading area. If you received your printer earlier, please contact support@dtm-print.eu to get your free set of shipping caps. Every set of shipping caps includes three large black rubber caps, three small orange rubber caps and one red printhead cap.

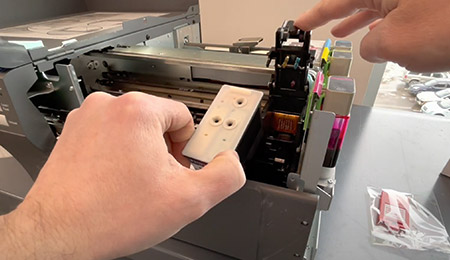

Remove the print head.

Install the red cap. Align the pins with the holes on the top of the print head.

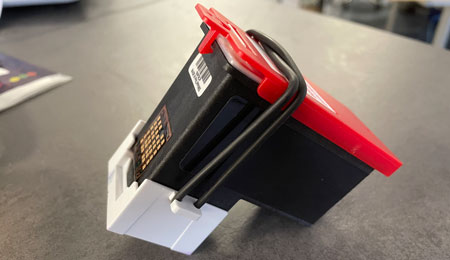

Then seal the print head by capping with a cartridge/printhead garage or put it into a properly sealed plastic box. Please do not re-tape or cover the nozzles!. If you are asked to send in your print head this will keep it from leaking. Otherwise it will keep it fresh until your printer returns. If support asked you to send back the print head, put it inside the box but not inside the printer. Otherwise, you may keep it with you.

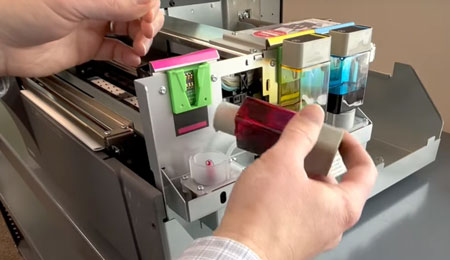

Remove the three ink tanks. To prevent leaking, hold the tank above the reservoir for a few moments until it stops dripping.
Tip! Hold the ink tank over the reservoir as you turn it over.

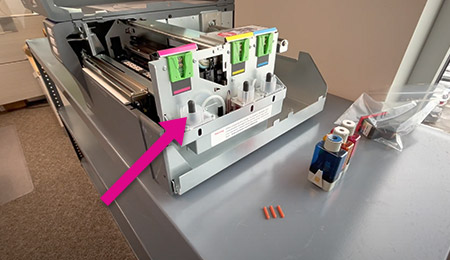

Now install the black rubber caps. Make sure they are all secure.

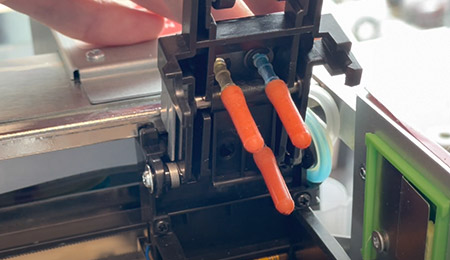

Let’s cap the printhead side with the smaller orange caps. Push the caps until the first rib on the nozzle. Then close the lid.

Close the cover and secure it with tape.

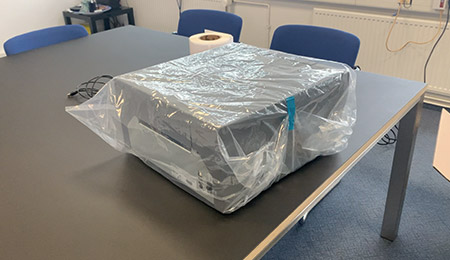

Bag the printer and tape it.

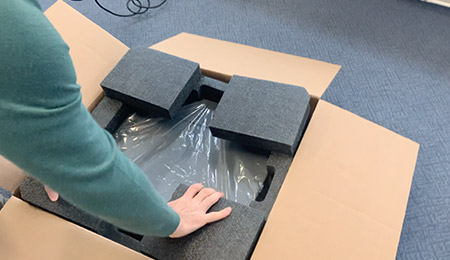

Use the original packaging for best protection.
