LF140e Packing Instructions

Please retain all packaging materials!

Before the shipping the product must be packed properly to avoid damage. Any damage due to improper packaging is not covered under warranty. Damages caused by improper packaging will be charged.

Prepare unit and accessories for shipping

Preparing the unit:

To prepare your LF140e for shipping, please remove the label roll.

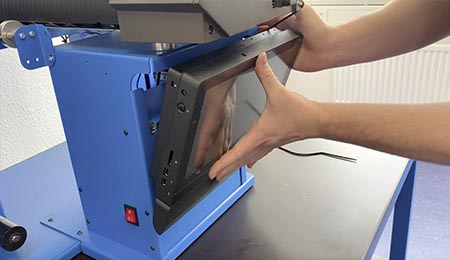

1. Unlock the fixation pin and put the shuttle in transport position.

DTM LF140e put the Shuttle in Transport Position.

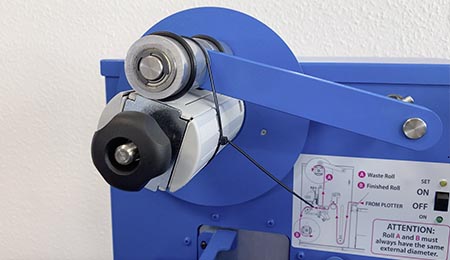

2. Secure the waste press.

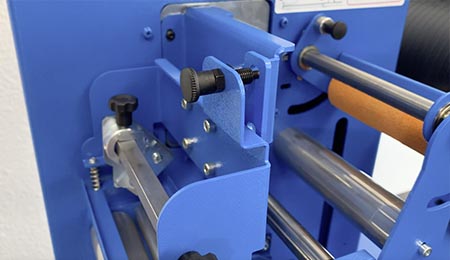

3. Put the slitting station in transport position.

Put the Slitting Station in Transport Position LF140e.

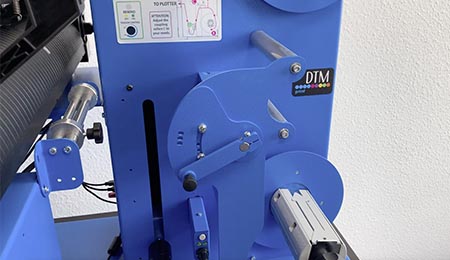

4. Open the coupling rollers.

Open the Coupling Roller from LF140e DTM

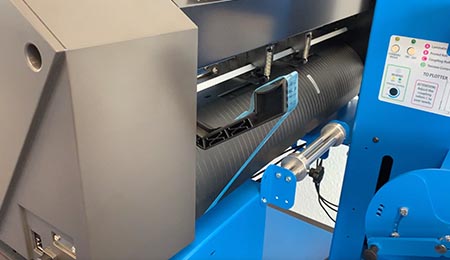

5. Pull down the pinch lever and secure it with tape.

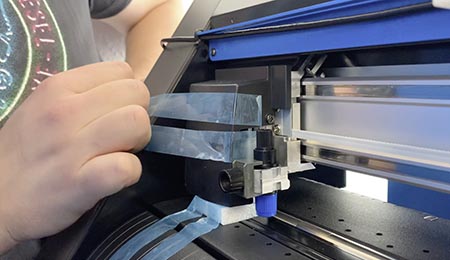

6. Put the knife carrier in transport position and secure it with tape.

DTM LF140e put the Knife Carrier in Transport Position.

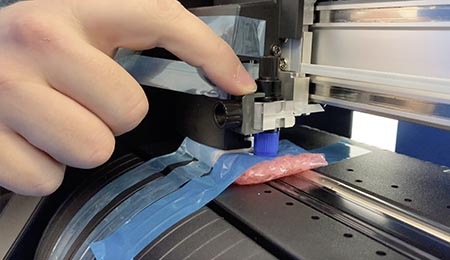

7. Protect the knife with some bubble warp below.

Protect below LF140e Knife with Bubble Wrapper.

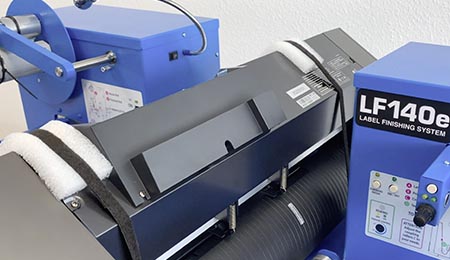

8. Secure the plotter. Feed the velcro strap under the cables to avoid pinching them.

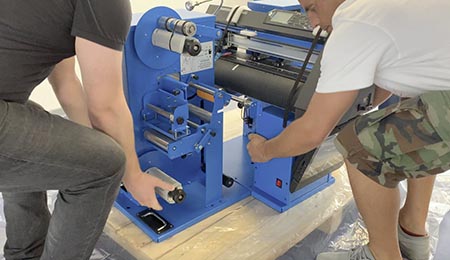

9. Lift the LF140e onto the pallet. Attention! The unit should be lifted by at least two people.

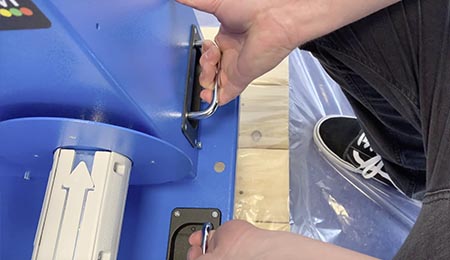

10. Align the fixation holes with the holes in the pallet.

Align the Label Printer to the fixation Holes.

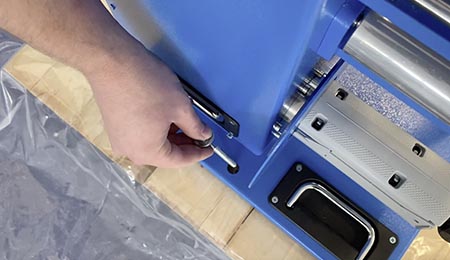

11. Tighten the fixation screws.

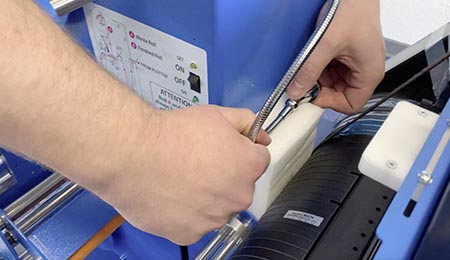

12. Secure the lamp.

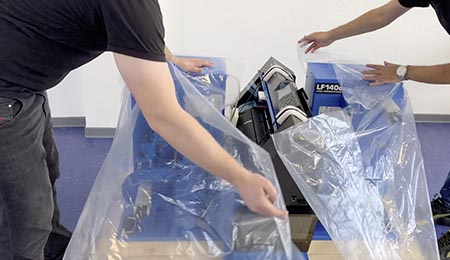

13. Wrap the packaging foil.

Wrap the Label Finishing System into Foil.

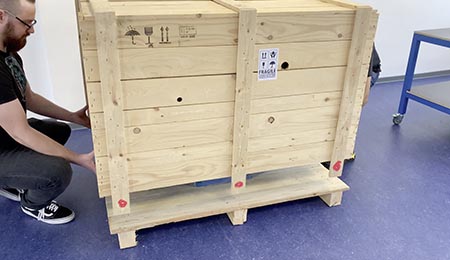

14. Lift the lid onto the box and screw the six screws onto the pallet.

Lift the Lid onto the box for the Label Finishing System.

Watch the LF140e Packing Video Tutorial

What about accessories?

For a quick handling please include all accessories (cables, power cords, power adapters, media (if the problem is related to it) & cartridges) if available.

Any documents?

Please add the original failure description into the packaging. A printout of the e-mail history should be included.

Shipping:

Please write the RMA number on the outside of the package.
Use to the address below. Non-prepaid shipments cannot be accepted.

DTM Print GmbH
Support
Mainzer Str. 131
65187 Wiesbaden
Germany

Further process:

Every incoming package will be identified by its RMA number. After repairment, the unit will be sent back to the recipient who contacted us for the RMA number. Amendments, such as change of shipping address, should be sent immediately.

The repair duration is approx. 5-12 working days.

Thank you for your understanding.

Feel free to contact us at any time for questions regarding the packing instructions. We’re available via e-mail at support@dtm-print.eu, by phone at +49 611 927770.
