Section 3: Primera PrintHub
Primera PrintHub is used to interact with the printer for gathering ink levels, maintenance, alignment, cost calculation and several other functions. You can use it to manage these functions on multiple LX610 print- ers and other Primera label printer models. PrintHub automatically installs with your printer driver and can be accessed through the printer driver preferences or as a program on your Windows start menu.
- Connect the printer via USB and turn on the power. The PrintHub accesses most of the information it uses from the printer itself so the printer must be turned on and communicating for the program to be useful.
- Go to Start - Programs - Primera Technology - Primera PrintHub.
a. Adjust alignment, sensor mode, output mode and advanced settings.
b. If you have multiple Primera printers connected, they will be listed here.
c. Past jobs will show the last 5 jobs along with cost information. Click the document icon to view a cost report.
d. Application Settings
e. Print Queue shows the currently printing job
f. Order Link
g. Frequent Activities
h. Current Ink Levels (Ink is displayed in 10% increments. Example 100% to 90% to 80% etc.)
i. Digital Die Cutting Media Status and Remaining Amount (If installed)

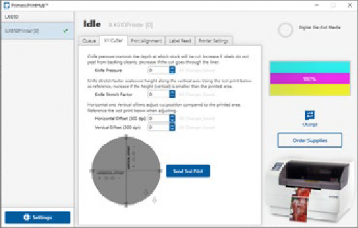

3A XY Cutter Settings – Cut Offsets, Knife Pressure and Stretch Factor
Cut Offsets, Knife Pressure and Stretch Factor settings can be found in Primera Print Hub on the XY Cutter Tab.
Cut Offsets If your cut does not line up with your printed image, you can adjust it using the Horizontal Offset and Vertical Offset settings. Press the Send Test Print to help you determine which direction to move the offsets or refer to the image below.
