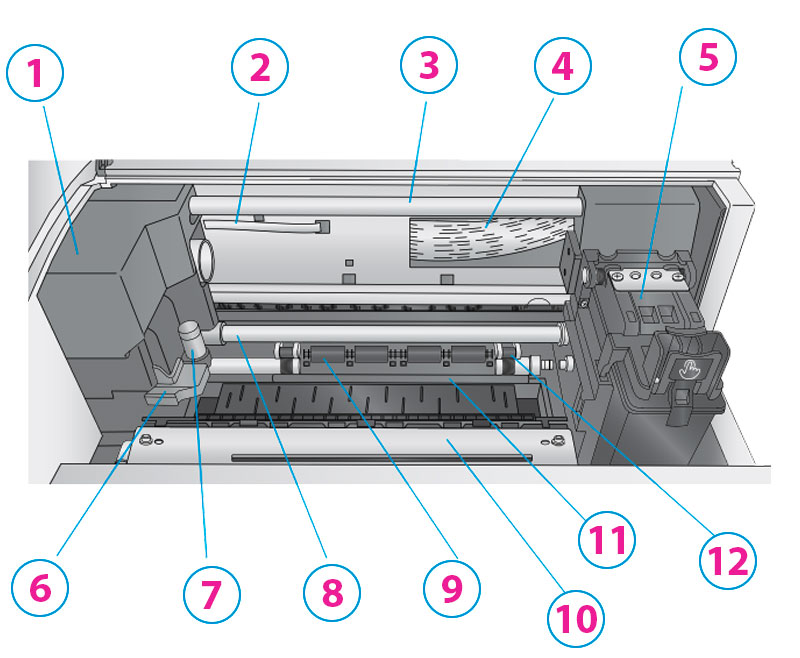

Interior
1Die Cutting Carriage
2Die Cutter Ribbon Cable
3Upper Guide Shaft
4Print Carrier Ribbon Cable
5Print Carrier
6Knife Collar Handle
7Die Cutting Knife
8Lower Guide Shaft
9Pre die-cut rollers
10Wear Strip
11Cutter Wheel Mechanism
12Die Cutting Pinch Rollers

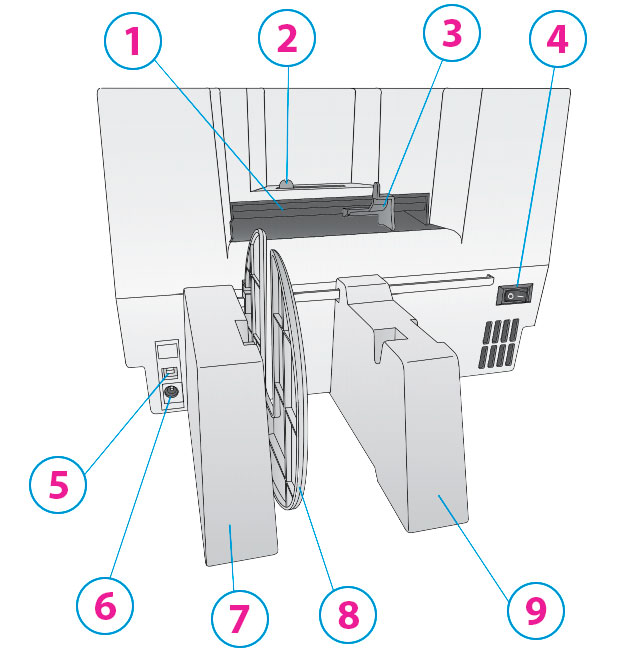

Back
1Infeed Area
2Gap Sensor Adjustment
3Movable Throat Guide
4Power Switch
5USB
6Power
7Fixed Roller Holder w/ Chip Reader
8Fixed Guide
9Movable Roll Holder
