1D Identifying the Parts

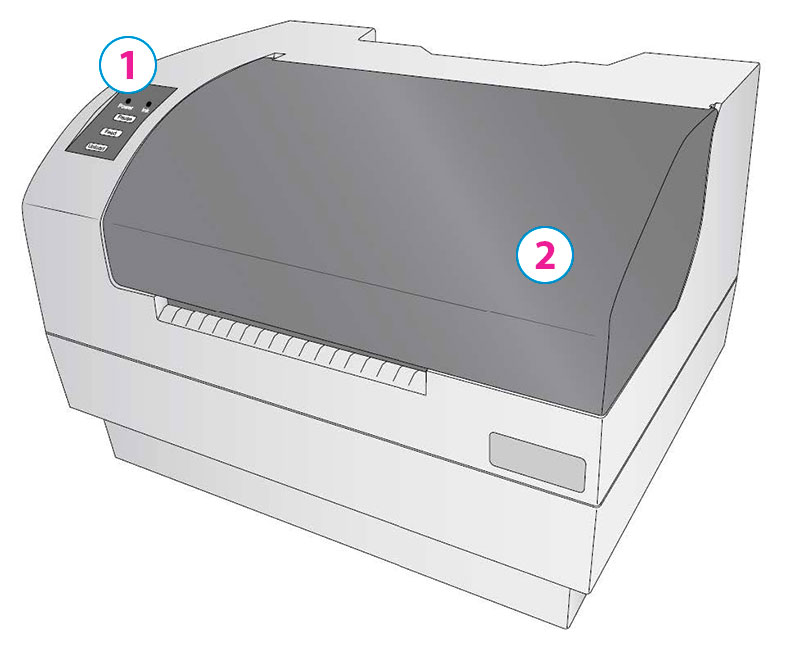

These illustration shows the printer from various angles so all important parts can be identified.

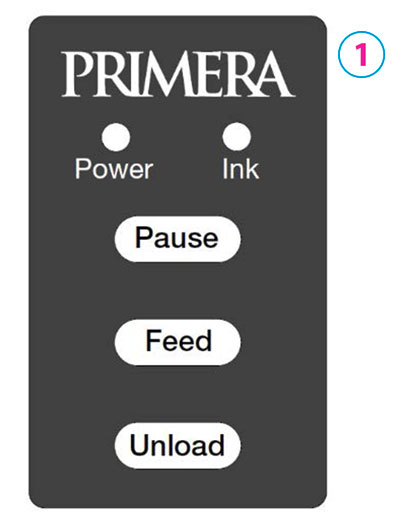

1Control Panel

2Front Cover

The Power LED indicates that the printer is on and ready to receive print jobs.

The Ink LED will illuminate when a cartridge has 10% or less of its ink remaining.

The Pause Button is pressed to pause a job to allow for loading of label stock and ink cartridges. The print- er pauses after the printing of the current label has finished.

The Feed Button is pressed in order to load label stock if the printer does not automatically detect the stock. When stock is loaded each press of the button will cause one label or a few inches to be fed through the printer.

The Unload Button is pressed to unload label stock after you receive an End of Roll message in PrintHub. The printer will reverse the label stock through the feed area.
