1D Identifying the Parts

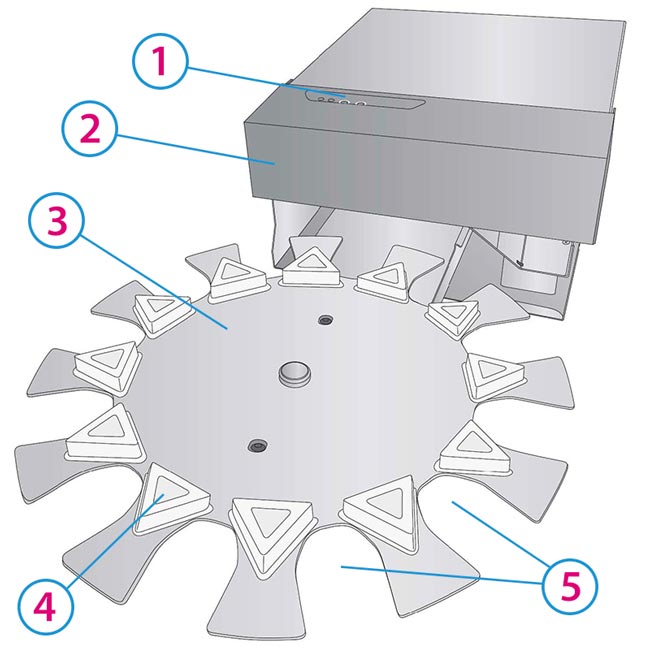

Assembled View
1Control Panel
2Top Cover
3Carousel Platter
4Placement Pegs
(Outer Triangles should be installed for most Cookies)
5Cookie Slots

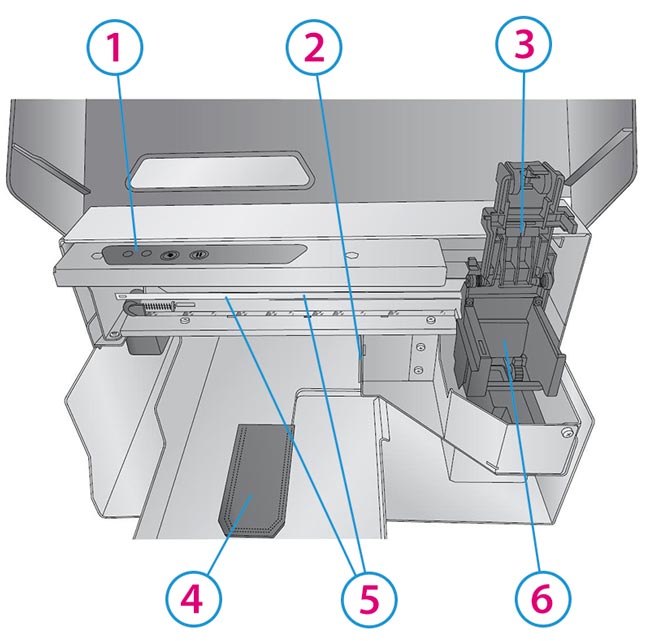

Interior Carriage View
1Control Panel
2Cookie Height/ Diameter Sensor
3Cartridge Lid
4Cookie Platform
5Encoder Strip
6Cartridge Carrier

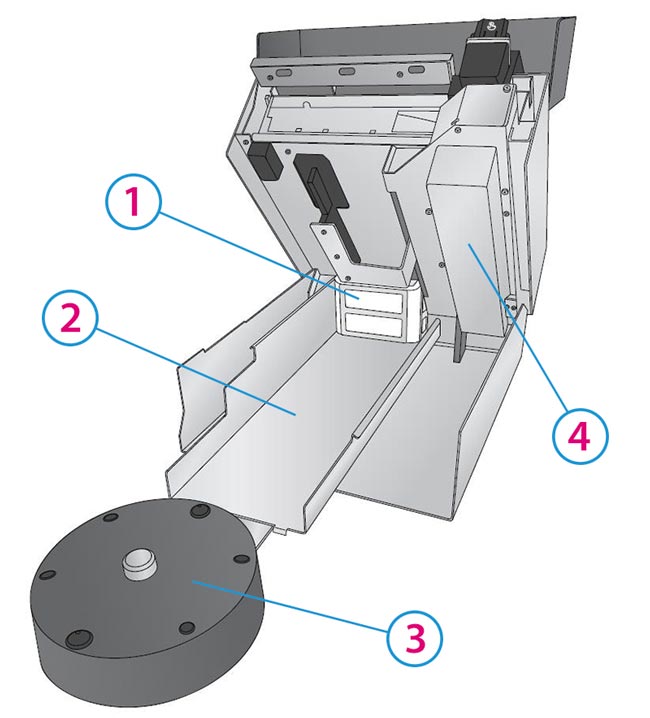

Under Carriage View
1Crumb Catcher Filter
2Crumb Catcher
3Carousel Base
4Ink Trough

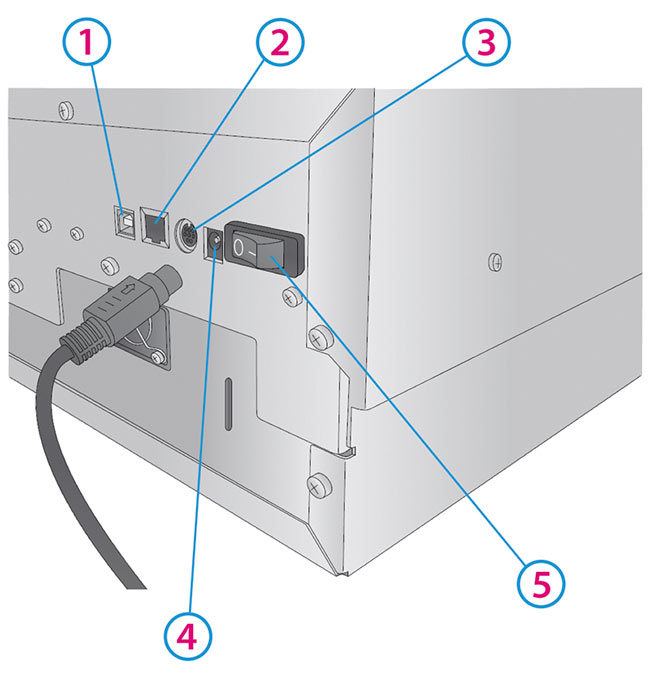

Back View
1USB Port
2Ethernet Port
38 PinMini Din Port
4Power Port
5Power Switch
