Section 1: Unpacking and Setup

Thank you for purchasing the AP550e Label Applicator (hereafter referred to as "Label Applicator"). Boxes, bags, bins, bottles, packages, cans etc. will collectively be referred to as "containers."

The Label Applicator includes a Power Cord, 12 volt Power Adapter and the parts shown below. The Roll Bar, Roll Guides and Roll Drag Arm are located in the supply box along with the Power Cord. You will need to assemble them as shown. Attach the Power Cord and switch on the power as shown below. Remove all tape securing parts of the unit.

Place the unit on the back edge of a table at least 30" deep so that the Container Platform does not extend beyond the edge of the table when fully extended. This will prevent the platform from accidentally hitting the user during operation.

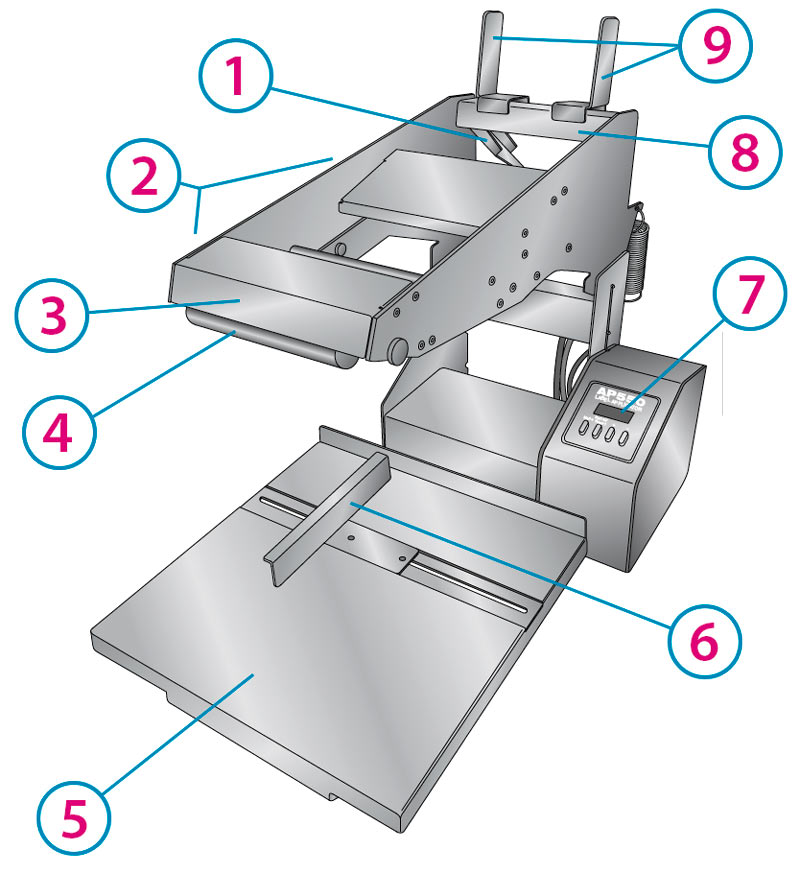

1Roll Drag Arm

2Application Arm

3Push Bar

4Application Roller

5Container Platform

6Container Guide

7Control Panel

8Roll Bar

9Roll Guides

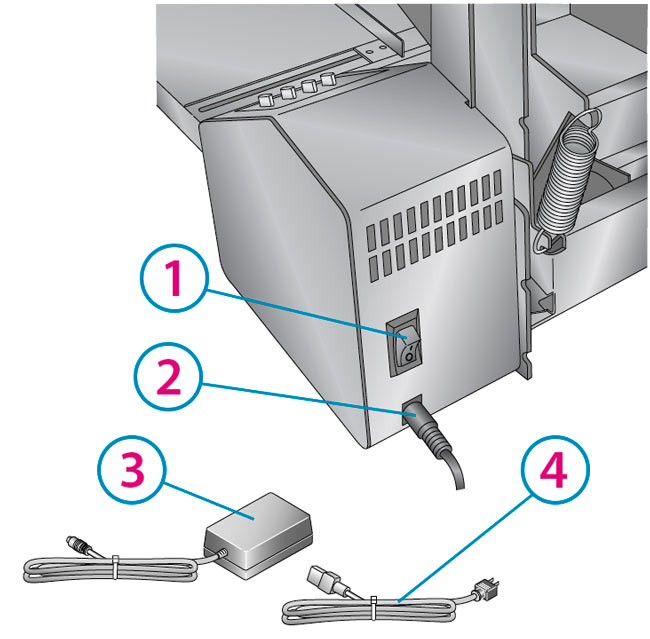

1Power Switch

2Power Input (12v)

3Power Adapter

4Power Cord
