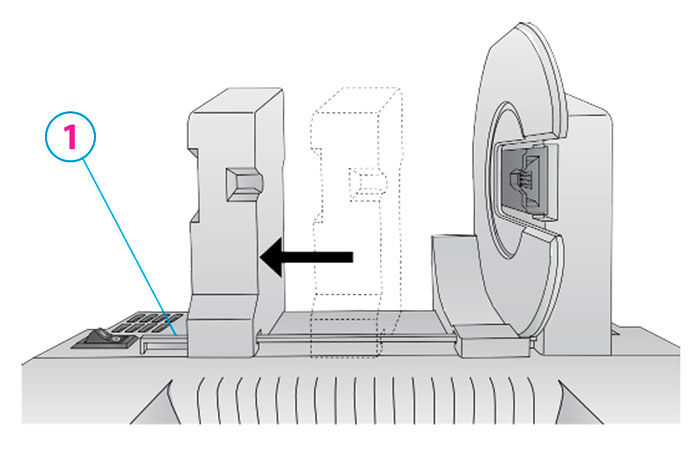

1. Move the roll holder to the preset position for on demand digital die-cutting (3rd mark from the left – 1.25”)

1Move to third mark from left

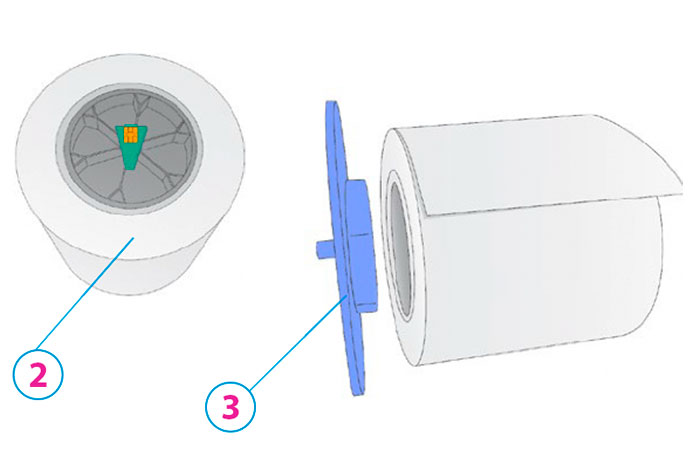

2. Install the Blue Hub on the open side of the digital die-cutting media.

Note: The green hub is not needed for digital die-cutting and can be stored in the notch on the movable holder.

2Digital Die Cutting Media comes with black hub with green chip.

3Blue Hub

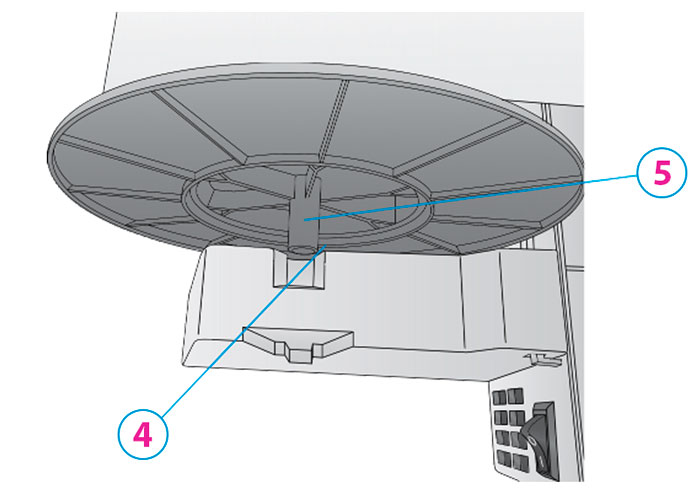

3. Set the roll in place so that the blue pin sits in the notch on the roll holder.

4Notch

5Blue Pin

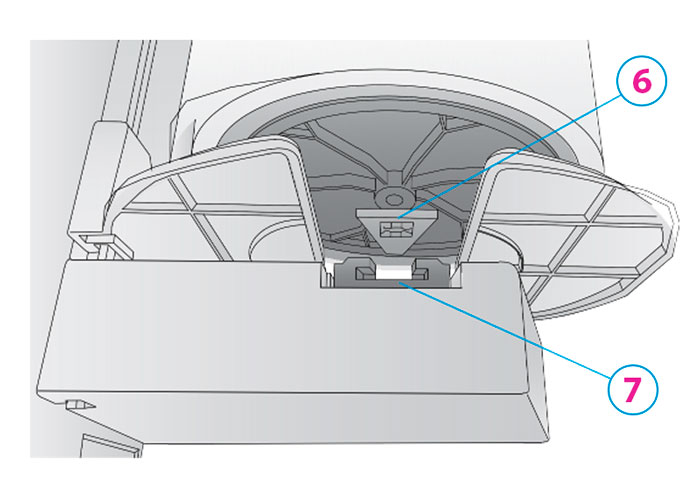

4. Make sure the green chip holder fits in the corresponding green slot on the roll holder.

6Green Chip Holder

7Notch

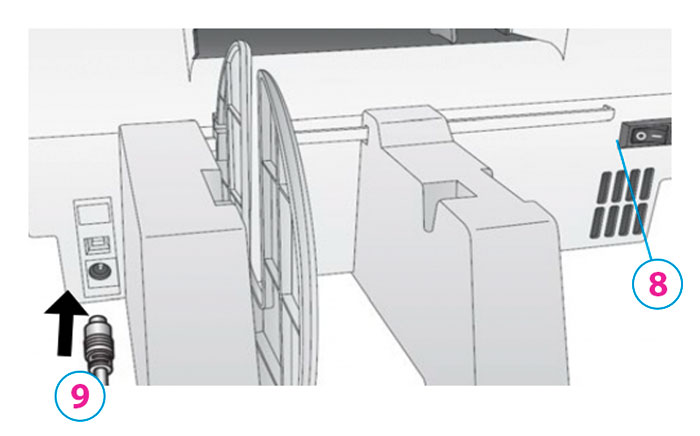

5. Before feeding the stock you must plug in power and switch on the printer.

8Power Switch

9Power Cable

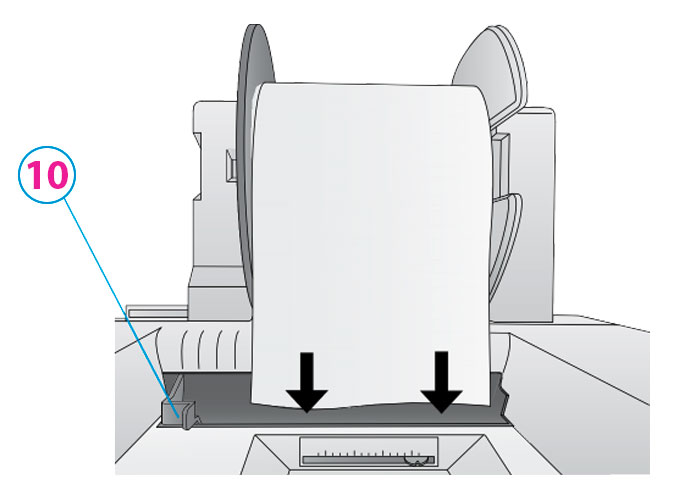

6. Guide the leading edge of the roll into the feed area. Move the blue guide to the far side.

10Blue Guide
