1C. Identifying the Parts

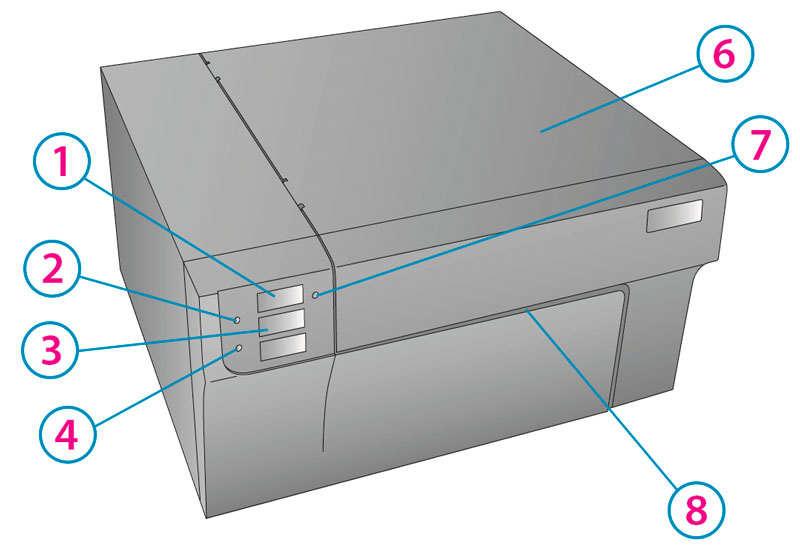

This illustration shows the front of the printer with its control buttons and LED indicator lights.
1Pause Button
2Power LED
3Load/Feed Button
4Ink Low LED
5Unload Button
6Top Cover
7Pause LED
8Label Tear Bar
The Pause Button is pressed to pause a job to allow for loading of label stock and ink cartridges. The printer pauses after the printing of the current label has finished. The Pause LED will illuminate when the printer is paused.
The Power LED indicates that the printer is on and ready to receive print jobs.
The Load/Feed Button is pressed in order to load label stock if the printer does not automatically detect the stock. When stock is loaded each press of the button will cause one label to be fed through the printer.
The Ink Low LED will illuminate when a cartridge has 10% or less of its ink remaining.
The Unload Button will unload the installed label stock by reversing it through the printer. Make sure to tear off the printed labels before pressing the Unload Button.
The Label Tear Bar is a serrated edge for conveniently tearing your finished labels from the printer. The printer comes with a white tear bar guard. For smoother label feeding, leave the guard in place during printing. When you are ready to tear off a label, remove the guard, tear off the label and replace the guard.

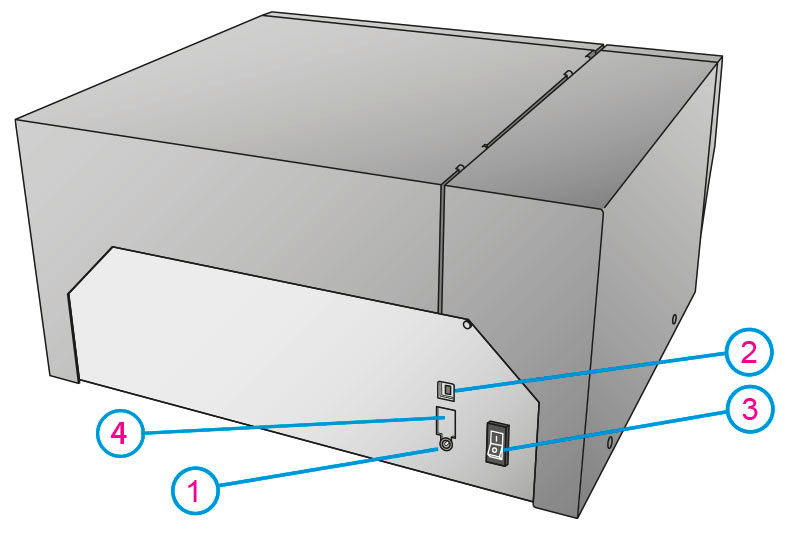

This illustration shows the input ports and power switch found on the rear panel of the printer.
1Power Input Port
2USB Port
3Power Switch
4Ethernet

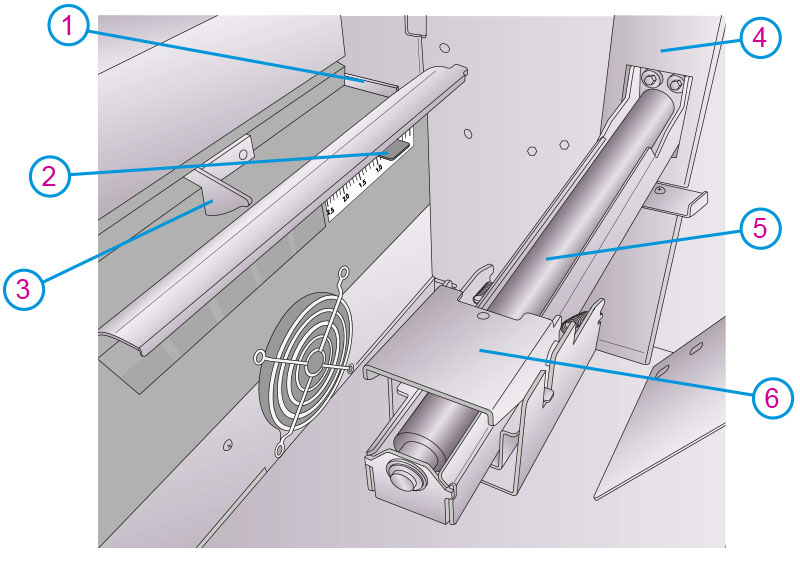

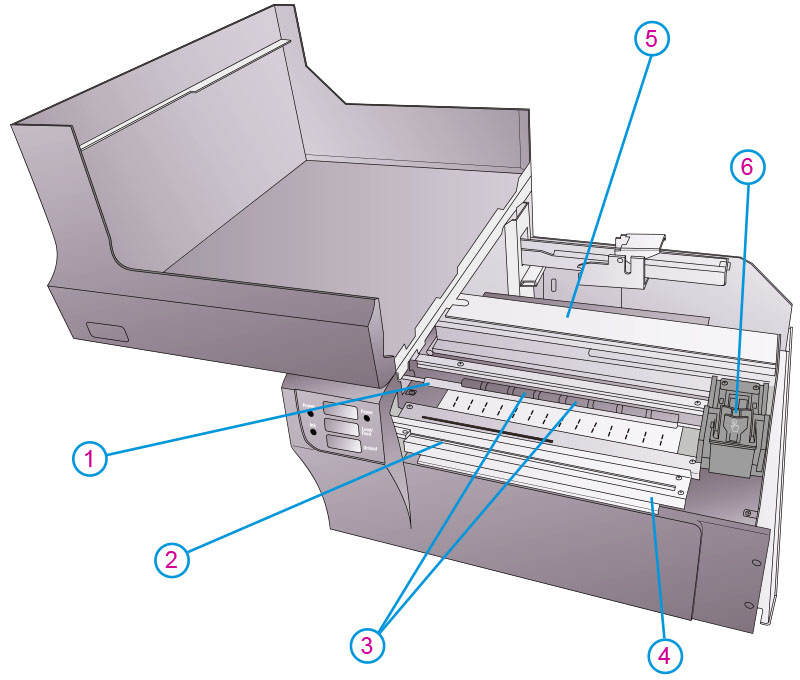

The next two illustrations show the interior of the printer.
1Fixed Throat Guide
2Sensor Adjustment
3Movable Throat Guide
4Roll Stop
5Roll Arm
6Roll Guide
1Grit Roller
2Cutter Track
3Pressure Rollers
4Cutter Wheel Replacement Access Port
5Removable Panel to clear label jams
6Cartridge Carrier
1Magenta Ink Tank
2Yellow Ink Tank
3Cyan Ink Tank
