6C Replacing the Ink Filters

There are two ink filters that capture ink overspray that naturally occurs during printing. These filters can be cleaned or replaced. Filters are available on Primera’s website.

Filter Pack. SKU: 740123 - Contains ink trough filter and Crumb Catcher filter set.

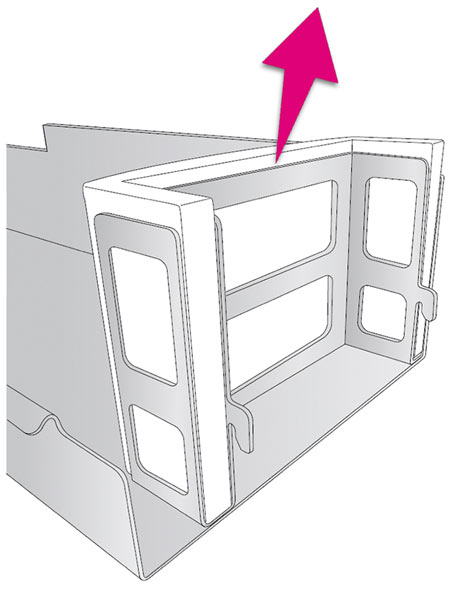

Crumb Catcher Filter Replacement

The filter can be removed from the Printer in fully submerged in water to clean.

Replacement/Cleaning Frequency: Clean every cartridge change. Replace every six months

Ink Trough Filter Replacement

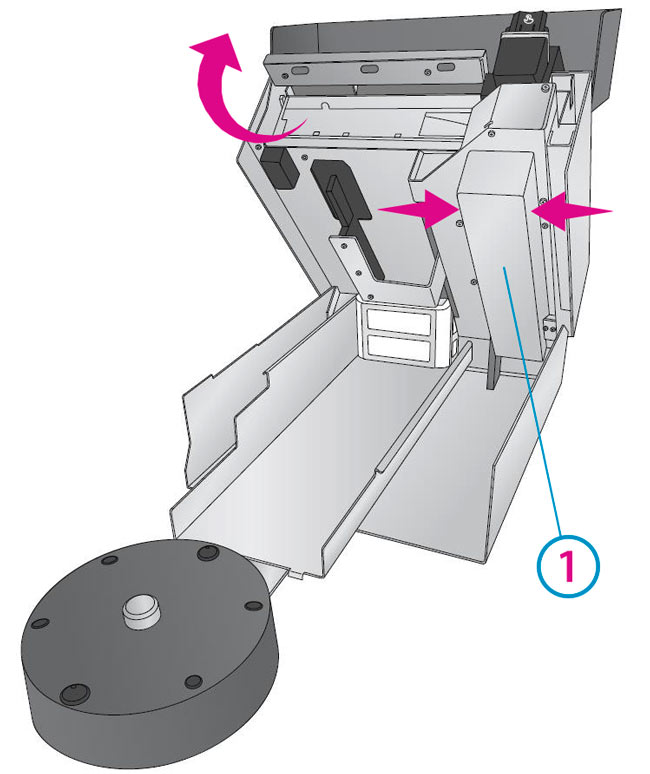

The Ink Trough can be accessed by lifting up on the top section of the Printer. Squeeze the steel together near the top to disengage the locking tabs. Once the trough is removed, the filter can be accessed near the back of the Printer.

Replacement/Cleaning Frequency: Clean every cartridge change. Replace every six months.

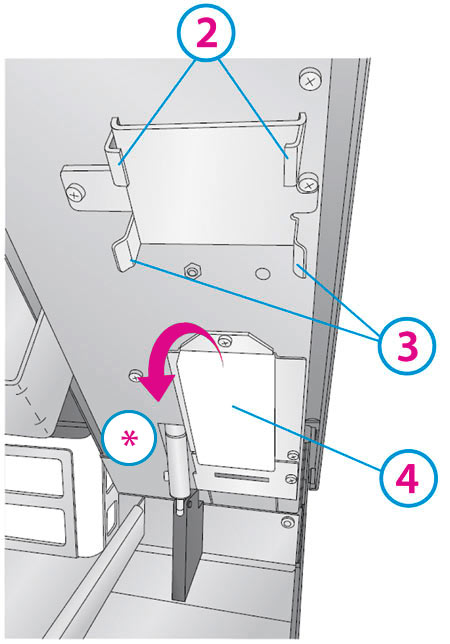

*Pull near the top to pivot the filter out

1Ink Trough

2Release Tabs

3Ink Trough Guides

4Ink Trough Filter

Note: To remove or insert the ink trough squeeze the ink trough not the tabs.

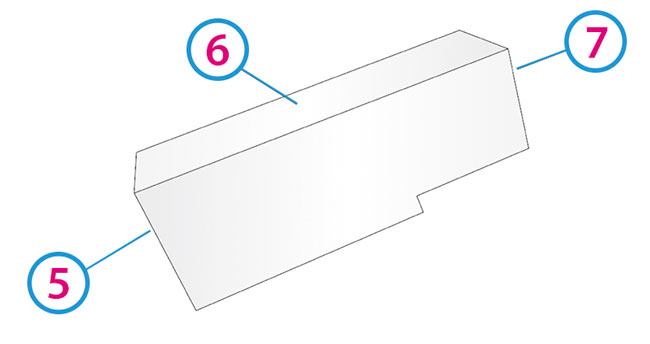

5This is the side of the filter you see when it has been installed

6Ink Trough Filter

7Insert this end first toward the back of the Printer.

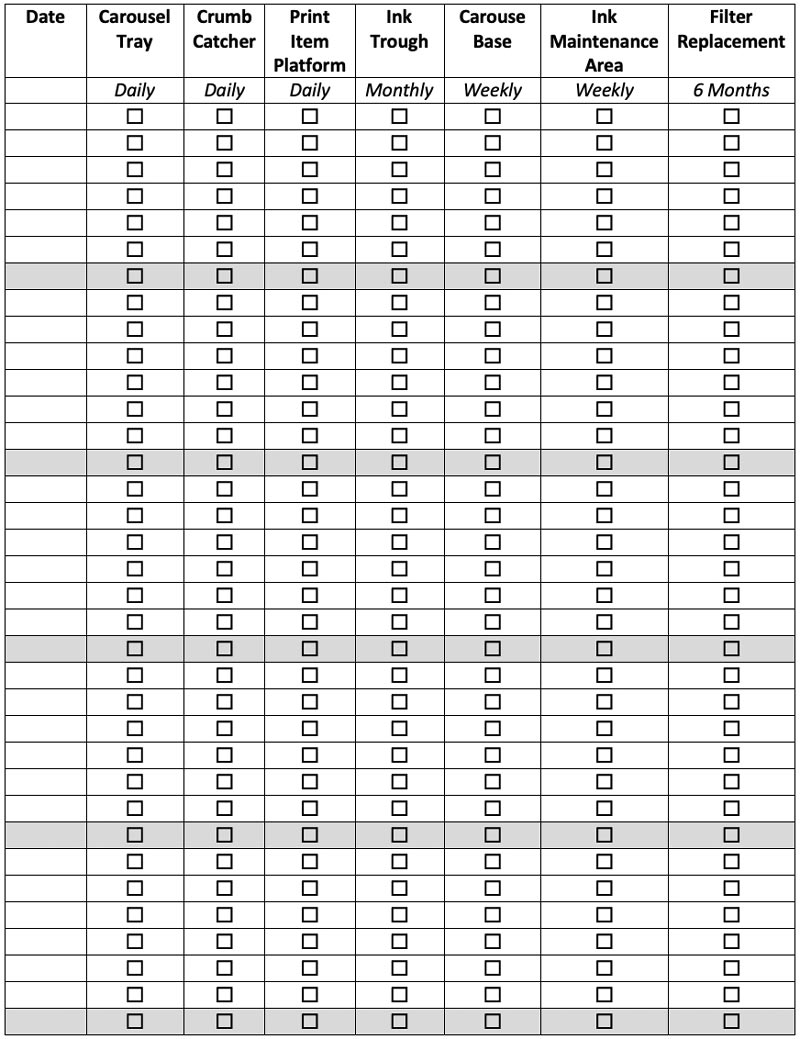

Cleaning/Replacement Checklist (download example here)
