Section 7: Specifications
| Label Liner Width | 22,2mm - 104,8mm (0.875” - 4.125”) |
| Label Placement | Leading edge up to 203mm (8”) from trailing container edge |
| Label Roll Diameter | 203mm (8”) (maximum) |
| Label Roll Core | 50.8 mm - 76.2 mm (2” - 3”) ID |
| Electrical Rating | 12 VDC, 5.0 A |
| Power Requirements | 100-240 VAC, 50/60 Hz, 1.7A |
| Agency Certifications | UL, UL-C, CE, FCC Class B |
| Weight | 24 lbs [10.9 kg] |
| Dimensions | 12” W x 21.3” D x 10.1”– 15.4” H [305 x 541 x 256 – 391 mm] |
* Container may overhang platform to the front and/or either side.
** Containers shorter than 0.8” [20.3 mm] may require adaptive spacers. Some very short containers may not be stiff enough to support label application.

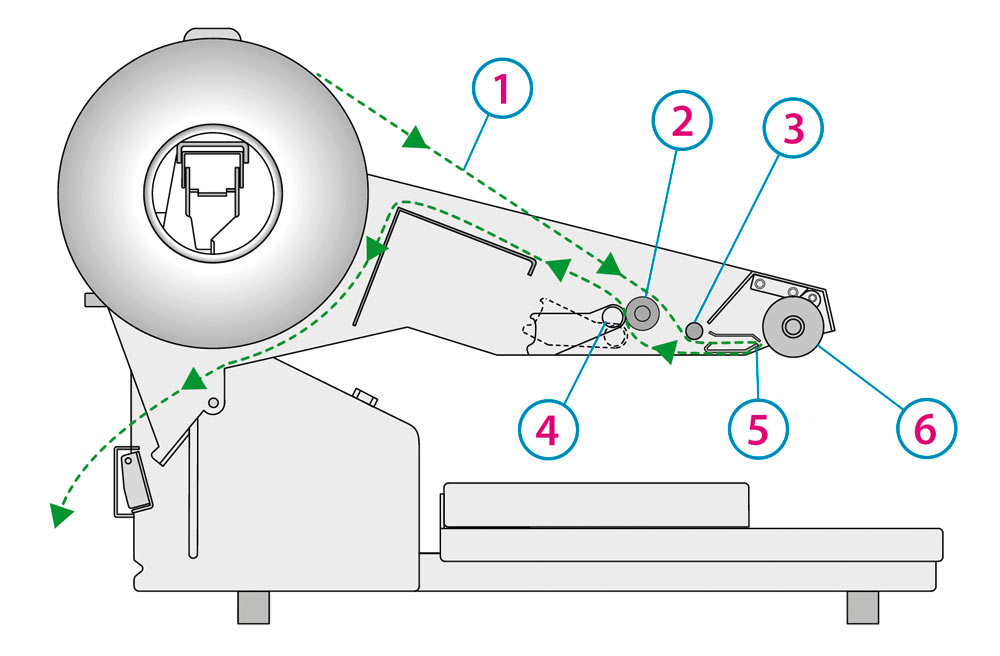

Appendix A: Label Path Diagram
1Label Path
2Liner Drive Roller
3Label Guide Roller
4Liner Idler Roller
5Peel Edge
6Application Roller

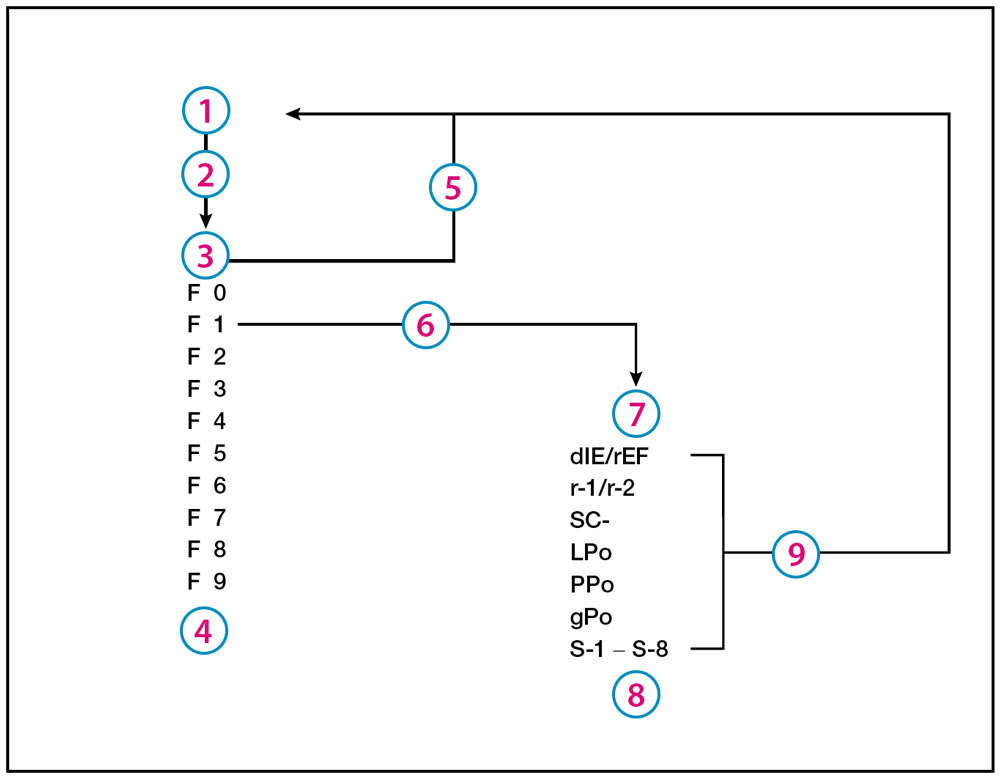

Appendix B: Control Panel Flowchart
Label Application Mode
1Label Count
2press “Mode”
3Memory Location (0-9)
4(Press “Recall/Reset” to move to next memory location)
54 sec.
6hold “Mode” for 2 sec.
7Setup Mode (for F 1)
8(Press “Recall/Reset” to move to next setting)
9press “Mode”
